DayDusk

The Concord

Americana Collection · Prairie influenced

1,907 SF · 3 bed · 2.5 bath

Highlights

All bedrooms upstairs
Reading nook / nursery off the master
Open floor plan
Mudroom
Extra garage space
Country kitchen with island
Main-floor laundry

Every set includes

Cover sheet with rendering
General notes
Floor plans
Exterior elevations
Interior elevations
Roof plan
Cross-sections and details
Electrical schematic
Foundation plan
Framing plans

Plan set

$1,800

Complete plan set$1,800
Modifications for your lotContact for quote
DeliveryPDF · 24×36 · 2 business days · no printed copies
With CAD / SketchUp files$2,880 (plan + 60%)
REScheck energy reportNot included
Building code2021 IRC
LicenseOne build per purchase

All rights remain with Lev Design Studio. You receive a license to build, not the copyright: no transfer, resale or reuse beyond the license.

Each purchase licenses one build; building again requires a separate contract with Lev Design Studio. Drawn to the 2021 IRC; local amendments and engineering may apply.

Refunds within 5 days of purchase. After that, no refunds, but you can exchange for a different Lev stock plan.

Buy plan Ask a question

Online checkout is being set up. Buy plan sends Chris a purchase request.

Heated area: 1,907 SF
First floor: 1,245 SF
Second floor: 662 SF
Basement: Optional
Garage: 1-car, side entry
Beds / baths: 3 bed · 2.5 bath
Stories: 2
Width × depth: 30'0" × 73'7"
Height: 27'0"
Roof pitch: 3/12
Ceilings: 9'1" main · 8'1" upper
Lot: Corner, narrow
Building code: 2021 IRC

Drawings

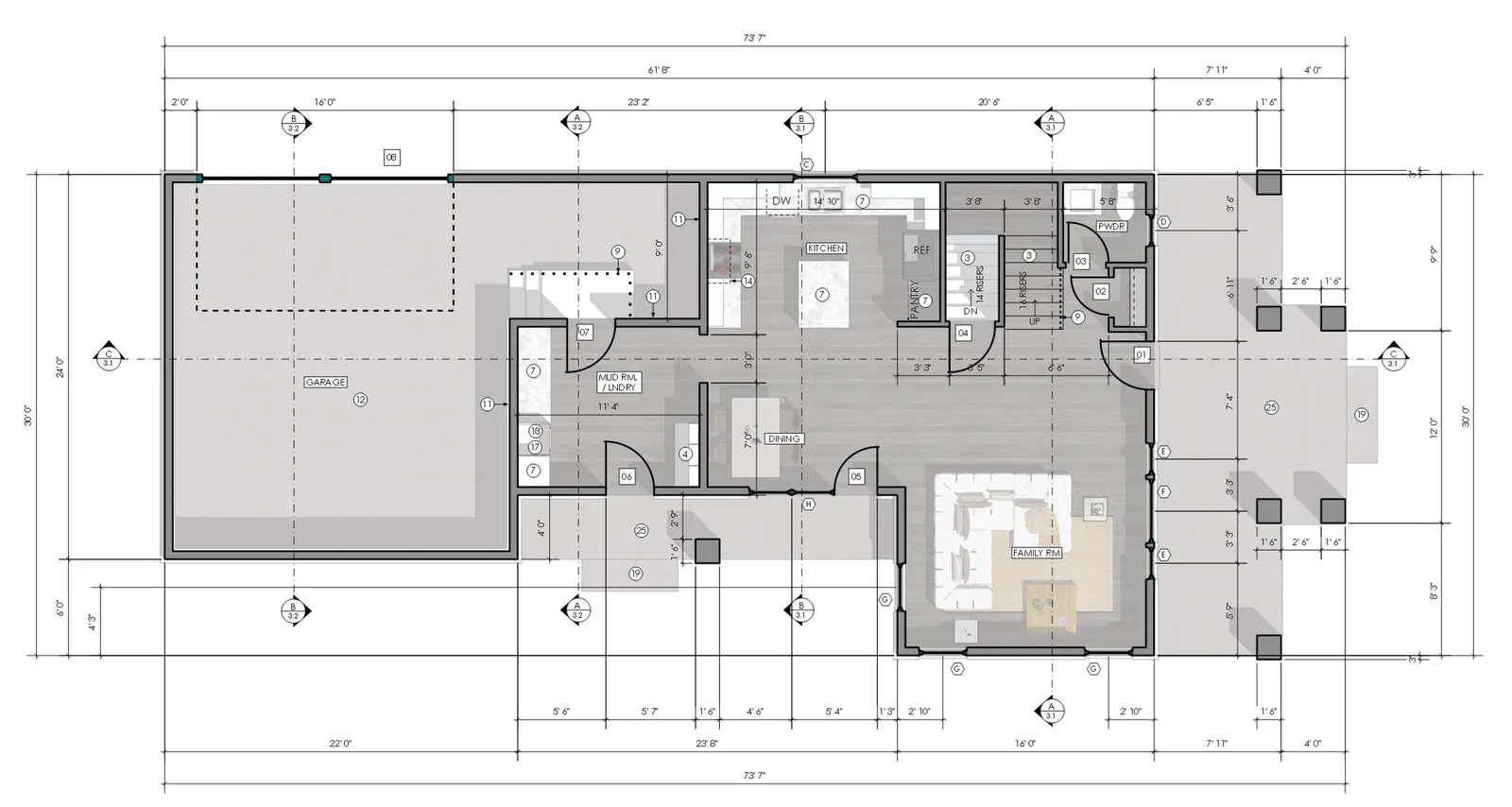

The Concord, main floor plan — Main floor plan

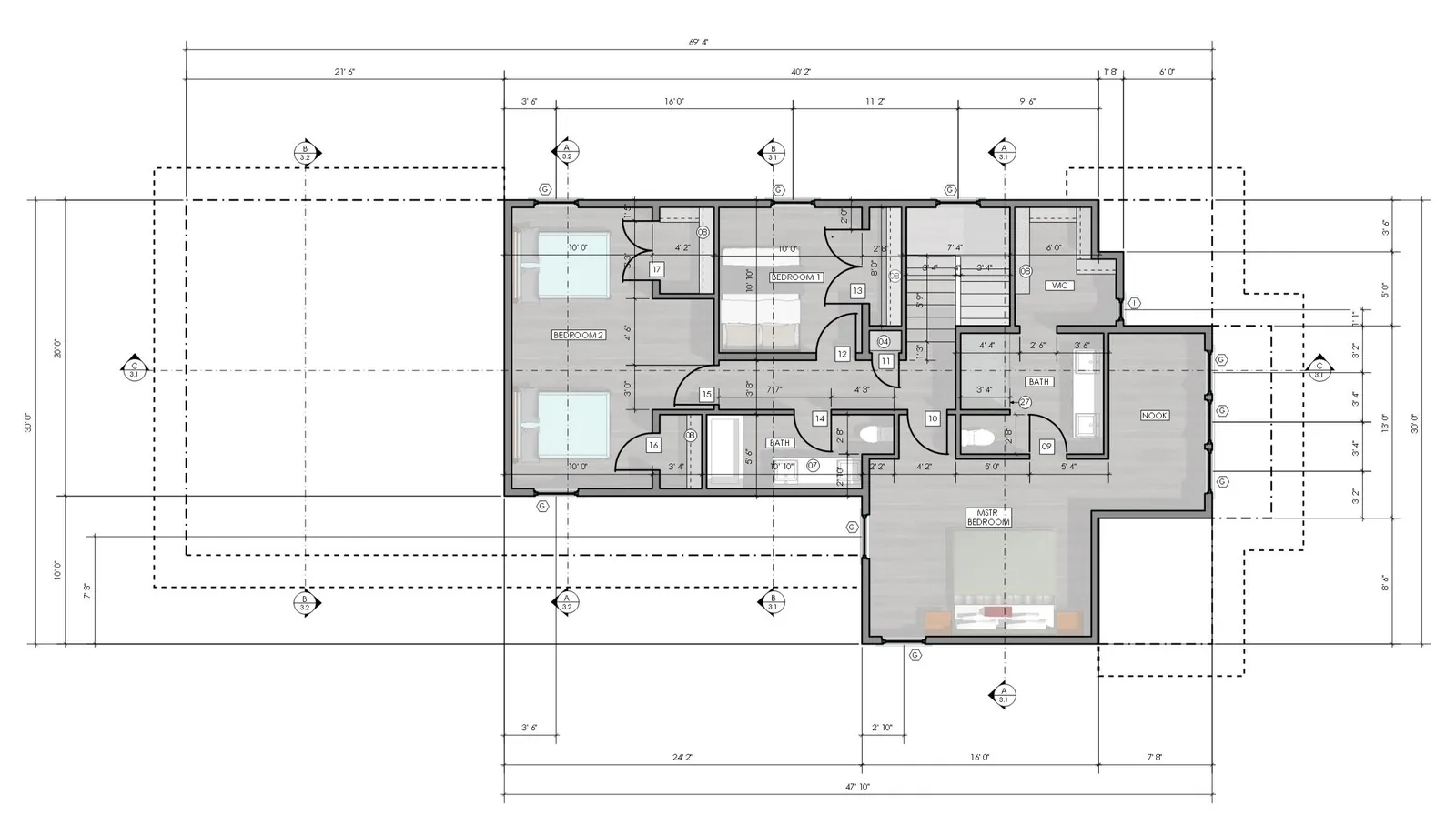

The Concord, upper floor plan — Upper floor plan

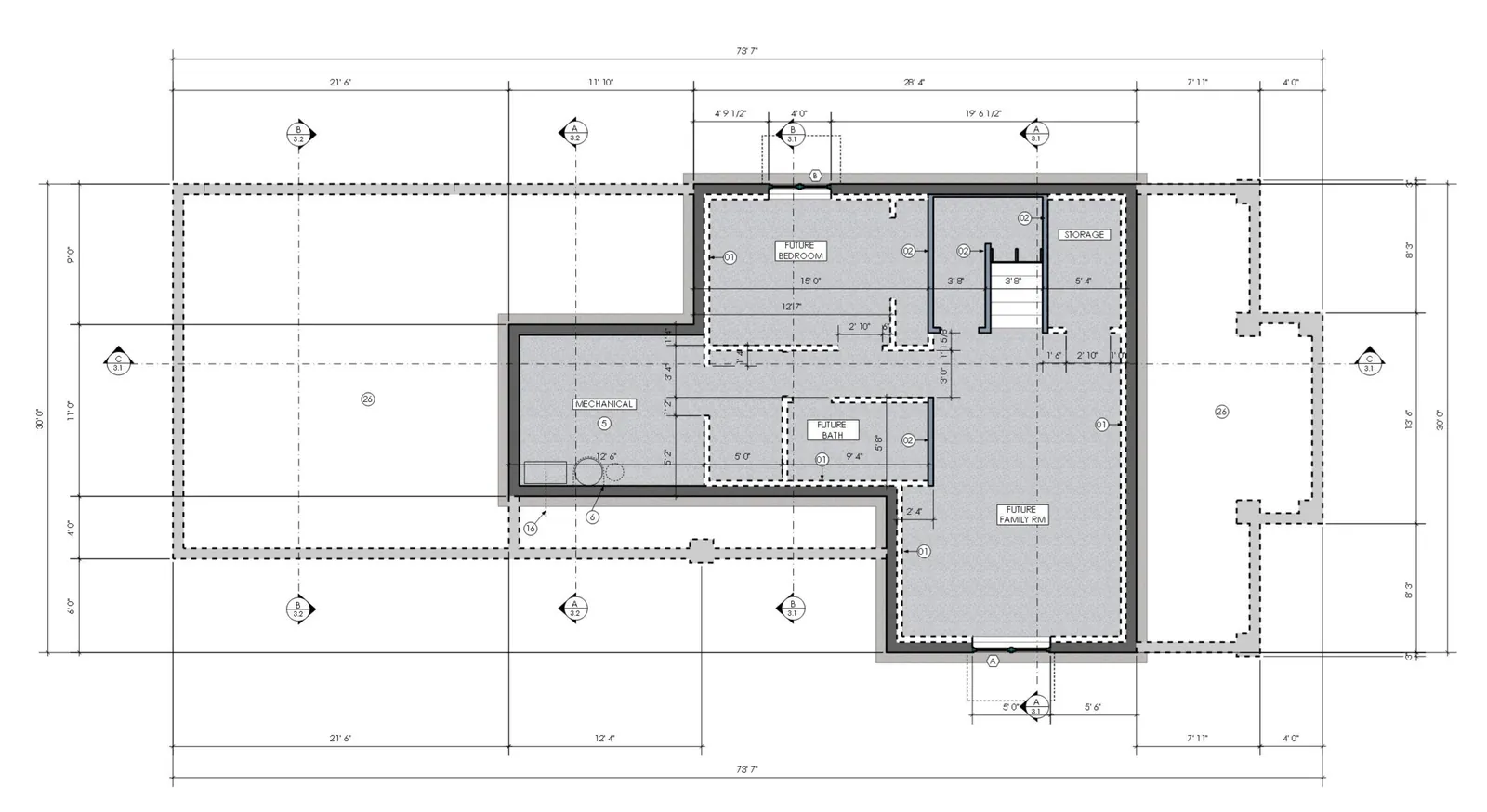

The Concord, optional basement plan — Optional basement plan

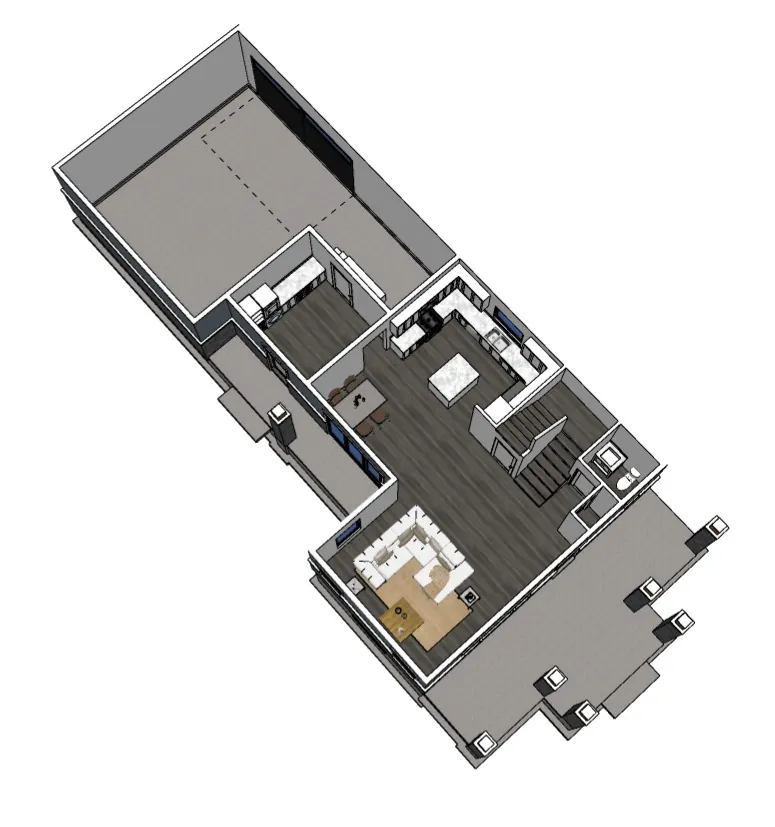

The Concord, 3d floor plan, main level — 3D floor plan, main level

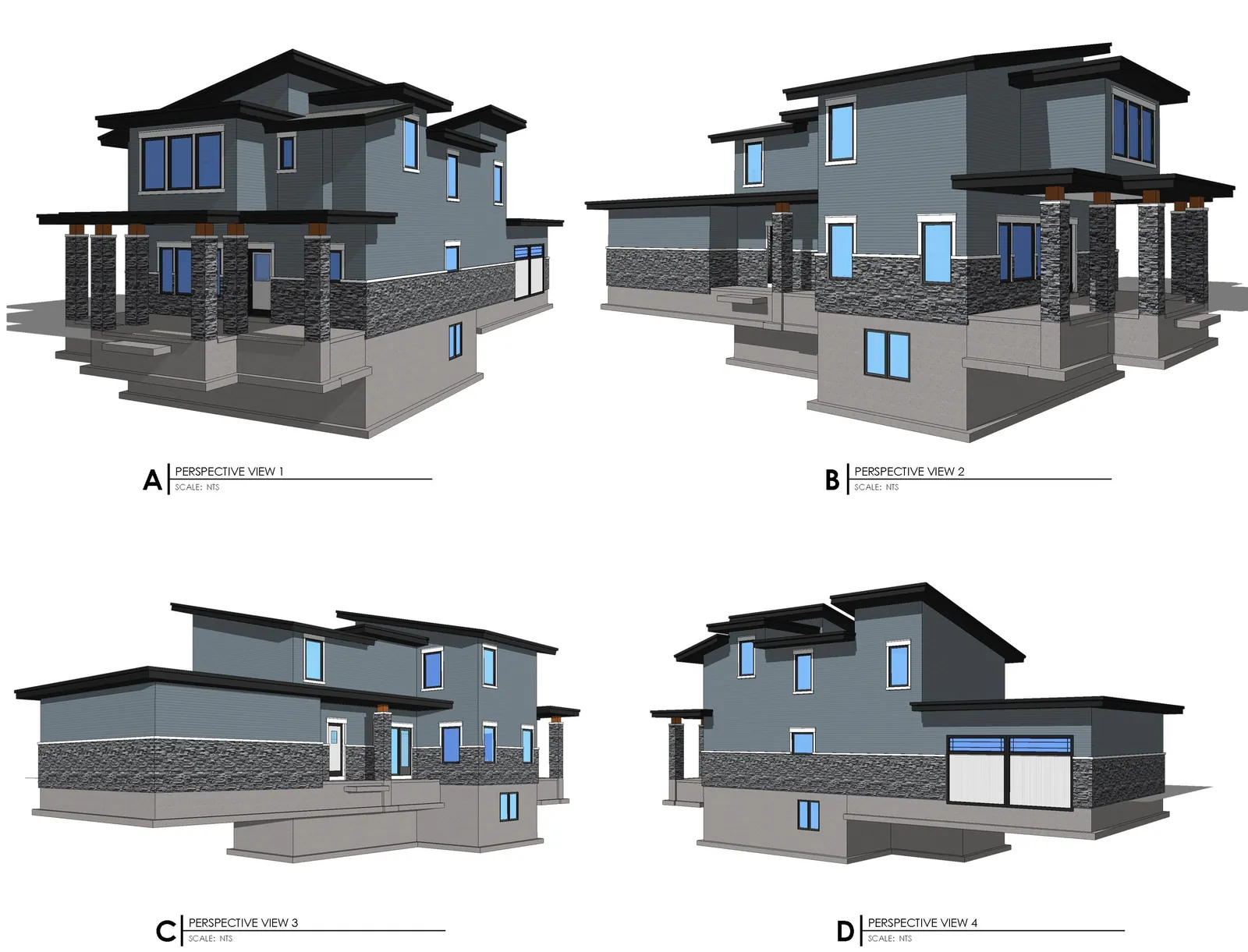

The Concord, exterior elevations — Exterior elevations
